DT Swiss - Axles

Name: Marleen Wholesalers Ltd.
Address: 53 Treffers Rd, Wigram, Christchurch, NZ
Telephone: 0800 627 533
Price range: Varies

Parts

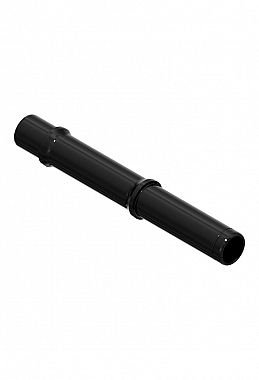

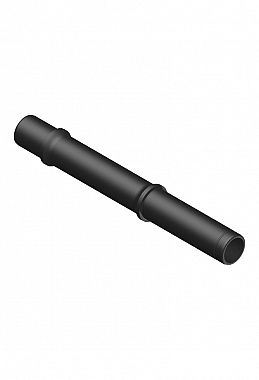

DT SWISS - AXLES

This axle is found in 2011+ 240, 350, 370 and 440 rear hubs
It can be used to replace pre-2010 axles that do not allow for 12mm Thru Axles
Compatible with 135mm QR, 135mm x 10mm Thru Bolt, 135mm x 12mm Thru Axle and 142mm x 12mmThru Axle (end caps may be needed for conversion as well) 148mm x 12mm

Code	Description
SW-PT-HB-112	DT AXLE ALUMINIUM 100mm, 10/55.1mm PAWL/RACHET (HRCXXX00N4558S)
SW-PT-HB-167	DT AXLE ALUMINIUM 148mm 15/48.2mm FOR 12mm THRU AXLE (HCCXXX00N6645S)
SW-PT-HB-076	DT STEEL REAR AXLE 135MM FITS DISC AND IS DISC 340 (HCCXXX00S1207S)
SW-PT-HB-170	DT AXLE ALUMINIUM 148mm 15/48.2mm FOR 240/350 BOOST HUBS (HCCXXX00S6450S)
SW-PT-HB-092	DT AXLE 135 x 10mm Q/R 40.6mm 340 DISC BRAKE CL (HCCXXX00S1619S)
SW-PT-HB-178B	DT AXLE ALUMINIUM 110mm 17/68.3mm (HRCXXX00N2674S)
SW-PT-HB-178	DT AXLE ALUMINIUM 100mm 15/58.3mm (HRCXXX00N6282S)
SW-PT-HB-178A	DT AXLE ALUMINIUM 110mm 18/64.3mm (HRCXXX00N6451S)
SW-PT-HB-001	DT Axle Aluminum to fit 130mm,135mm and 142mm 240/350/440 hubs (12mm ID) (HCCXXX00S2216S)
SW-PT-HB-211	DT RW AXLE AL 142MM
SW-PT-HB-110	DT AXLE ALUMINIUM 150mm 15/57.1mm FOR 12mm THRU AXLE 240/350 (HCCXXX00S2399S)
