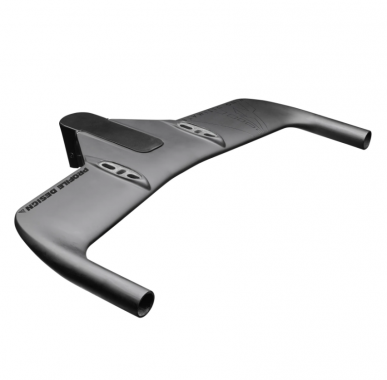

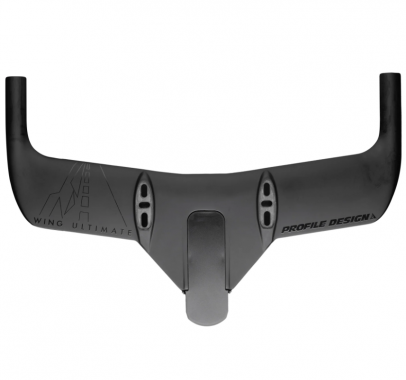

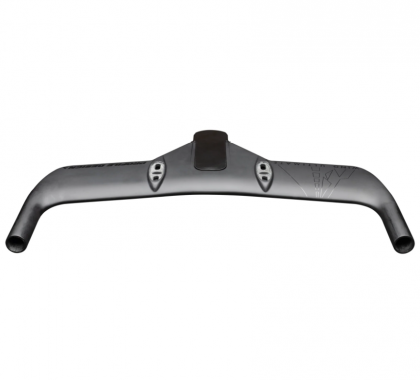

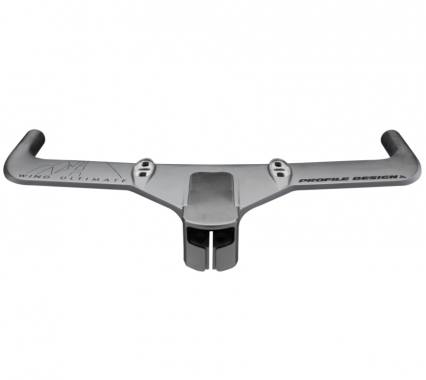

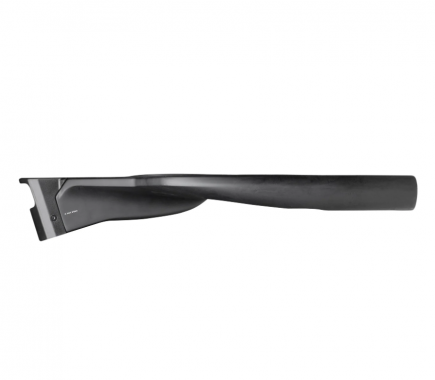

Profile Design - Wing Ultimate S Carbon Base Bar

PROFILE DESIGN - WING ULTIMATE S CARBON BASE BAR

The Wing Ultimate S has been designed to maximize aerodynamics within the updated UCI rules, offering a measurable improvement compared to a 3:1 design. It also drops a significant amount of weight compared to the Aeria Ultimate.

*Note:  Sold as just a Basebar

Key Features

• Full Carbon integrated bar and stem.
• Compatible with the A3 riser system.
• Compatible with top tube or headset cable routing.

Performance

The Wing Ultimate S offers a combination of aerodynamic integration and supreme fit range. With the change in spec comfort for most users will be increased alongside the performance advantage of lower weight.

Fit Data

• Armrest offset: -92.5mm to -10mm in 7.5mm steps
• Armrest Width: 124mm to 254mm in 18.5mm steps
• Armrest Stack: The minimum is 64mm to 84mm

Accessory Options

Designed to be paired with Profile Design Extensions - Carbon or Aluminum Versions or ASC Pro extensions

• Profile Design Extensions

Brackets and Risers

• A3A Riser Kits
• A3C Riser Kits
• A3 Reach Extenders
• A3 Tilt Booster

Who is it for

This bar is perfect for riders who wish to achieve lower positions than are possible with standard aerobar designs. Unlike other low stack bars it allows fine-tuning of the stack height so the rider is not limited to only one arm pad height. With the Race armrests fitted it is tailored towards riders who intend to be low and narrow to punch the smallest possible hole through the wind.

Tech Specs

• Effective stem length: 89.6mm
• Effective bar reach: 142.4mm
• Basebar Width: 420mm (Center-to-Center)
• Stack of Bracket Mount: 44.3
• Stack of Grips: 0.5mm
• Internal Cable Routing: Yes
• Di2 Compatible: Yes
• Extension Clamp Diameter: 22.2mm
• Bracket Tilt Adjustment: 0-15° (Aeria Ultimate Bracket - Sold separately) or reach 18-30° with A3 Tilt (A3 Tilt - Sold separately)
• ASC Pro Compatible: Yes
• Pursuit OD/ID: 24 / 19.6mm
• Construction: Carbon
• Color: Matte Black
• Weight: 594g (bare basebar)

Torque Settings

• Extension Clamp: 5Nm
• Armrest Bolts: 4.7Nm
• Stem Clamp: 5Nm Max
• Stem Cover: 0.5Nm
