M30 (30/28mm)
PRAXIS - M30 T47 BOTTOM BRACKETS FOR PRAXIS CRANKS
30MM DRIVE BEARING – 28MM NON-DRIVE BEARING

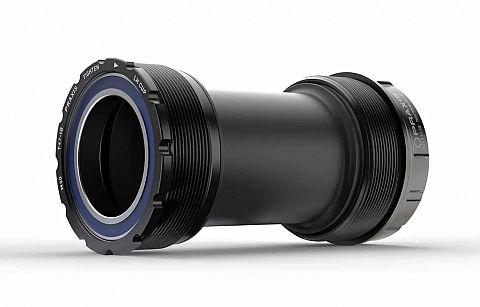

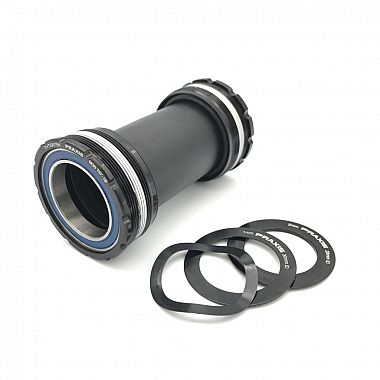

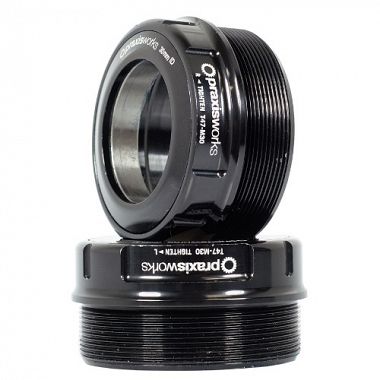

The M30 bottom bracket family is for the Praxis M30 spindle based cranks. The M30 spindles are 30mm and then have a step-down to 28mm to lock on the Non Drive bearing. These use a drive side wave-washer for the bearing preload, and a 30MM Drive bearing with a step down to 28MM Non Drive bearing. The Zayante, Alba, Girder and Cadet all use the Praxis M30 bottom bracket.
| Code | Description | RRP (Inc. GST) | Availability |
|---|---|---|---|
| PX-TP-2422 | PRAXIS TP-2422 T47 IB SHIM TOOL 24mm/22mm | $41.90 | In stock |
| PX-47-0000 | PRAXIS M30 T47 THREADED BB 68mm ROAD / 68/73 MTB (EXTERNAL BEARING) | $104.90 | In stock |

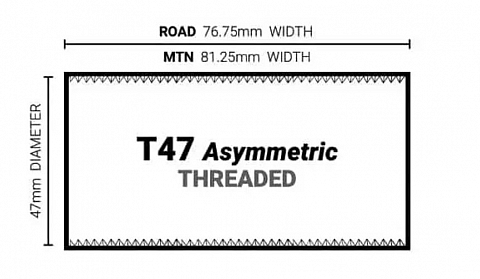

| PX-47-0080 | PRAXIS M30 T47 ASYMMETRICAL | $104.90 | In stock |

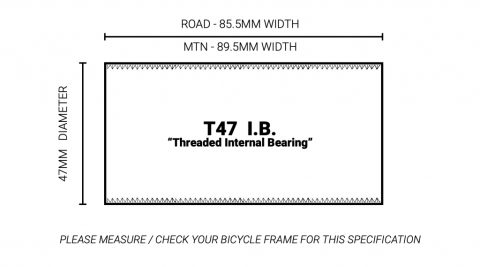

| PX-47-8000 | PRAXIS M30 T47 I.B.(INTERNAL BEARING) THREADED | $104.90 | In stock |
