DT Swiss - RWS Rear Axles

Parts

Product Details

DT SWISS - RWS REAR AXLES

One of the strongest wheel mounting systems around, the RWS Thru bolt has been proven reliable time and time again. This alloy axle RWS is available in 9mm fronts and 10mm rears. It is the perfect way to strengthen up and solidify an open drop out front fork and wheel combination as well as a standard drop out rear 135mm bike frame.

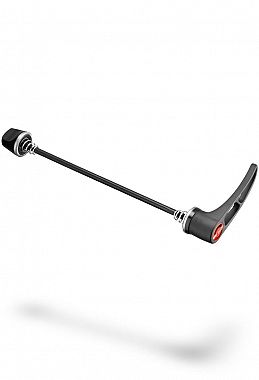

DT Swiss RWS Thru-bolt 12x142mm Conical Alloy Wheel Skewer: Ratchet Wheelmounting System (RWS), 100% Swiss made. Up to 50% more clamping force than a common quick release. Safe and easy to use: tighten up the system by turning the lever clockwise by hand as firm as possible (min. 15 Nm hand force). Multi-position lever with red, alloy release button for lever angle/clocking.

The 12x142 thru-bolts do not include nuts. These RWS skewers thread directly into the frame



DT SWISS RWS PLUG IN THRU-AXLES

The patented RWS wheel mounting system from DT Swiss is stiff, safe and user friendly. The Plug In version offers all advantages of a tool-free thru axle mounting. If you prefer the clean look of an leverless axle, just remove the lever unit and carry it in your backpack. If you choose to leave it at home, any standard 5 mm hex tool can be used in the axle. On the lever unit itself there is also a 5 mm hexagon mini tool - ideal to carry with you. Clean and smart: the RWS Plug In.

Code Description
SW-RWS-018A DT RWS E-THRU ROAD 12/142MM ALLOY (163 Long, 1.50 mm TP) (HWQASM00S2016S)
SW-RWS-008 DT RWS E-THRU 12/142mm (171 Long, 1.50mm TP) (HWQASM00S3632S)
SW-RWS-006 DT RWS (Aluminium) Aluminium lever 12mm/142mm (167.7 Long, 1.00 mm TP) (HWQASM00S2961S)
SW-RWS-007 DT RWS MTB 10/135MM THRU-BOLT (HWQASM00S2945S)
SW-RWS-015B DT RWS Thru Axle MTB 12/148mm (173.7 Long, 1.00 mm TP) (HWQASM00S2155S)
SW-RWS-017A DT RWS ROAD STEEL WITH ALUMINIUM LEVER 5/130 QR (HWQASM00S1050S)
SW-RWS-004 DT RWS MTB (Steel) with Aluminium lever 5mm/135mm (HWQASM00S2943S)
SW-RWS-015A DT RWS Thru Axle MTB 12/148mm (178 Long, 1.50 mm TP) (HWQASM00S6778S)
SW-RWS-009 DT RWS THRU BOLT BIG RIDE 15/150mm AL LEVER (198 Long, 1.50 mm TP) (HWQASM00S6498S)
SW-RWS-015 DT RWS Thru Axle MTB 12/148mm X12 (168.5 Long, 1.00 mm TP) (HWQASM00S9566S)
SW-RWS-002 DT RWS Thru Axle MTB 12/142mm X12 (162.5 Long, 1.00 mm TP) (HWQASM00S2955S)
SW-RWS-019 DT RWS PLUG IN THRU-AXLE 12/142MM ALLOY (171 Long, 1.50 mm TP) (HWQASM00S2034S)
SW-RWS-014 DT RWS PLUG IN THRU-AXLE 12/142MM X12 ALLOY (162.5 Long, 1.00 mm TP) (HWQASM00S0234S)
SW-RWS-013 DT RWS PLUG IN E-THRU 12/142MM ALLOY (163 Long, 1.50 mm TP) (HWQASM00S1459S)
SW-RWS-020 DT RWS PLUG IN THRU-AXLE BOOST 12/148MM THRU ALLOY(168.5 Long,1.00 mm TP) (HWQASM00S9923S)
SW-RWS-021 DT RWS PLUG IN THRU-AXLE BOOST 12/148MM ALLOY (177 Long, 1.50 mm TP) (HWQASM00S2035S)
SW-RWS-022 DT SWISS RWS PLUG IN 12/142mm TA (167.7 Long, 1.00mm TP) (HWQASM00S9909S)
SW-RWS-023 DT SWISS RWS PLUG IN 12/142mm TA FOR X 12 (162.5 Long, 1.00mm TP) (HWQASM00S0234S)
SW-PT-HB-028 DT CONVERSION KIT RWS 10 LEVER ALUMINIUM ROAD, LEVER SPRING AND SCREW (HWYXXX00S2931S)
SW-PT-HB-027 DT RWS 10 LEVER ALU MTB, LEVER SPRING AND SCREW (HWYXXX00S2922S)
SW-PT-RWS-050 DT SWISS RWS PLUG IN SINGLE ALUMINIUM LEVER (HWQXXX00S0548S)
