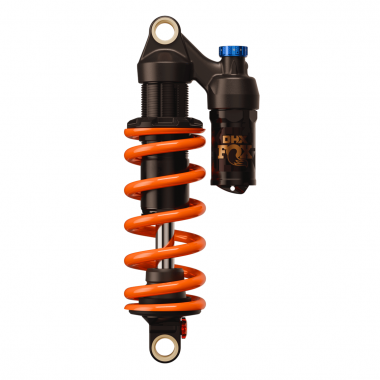

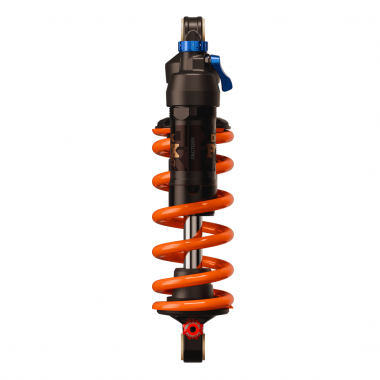

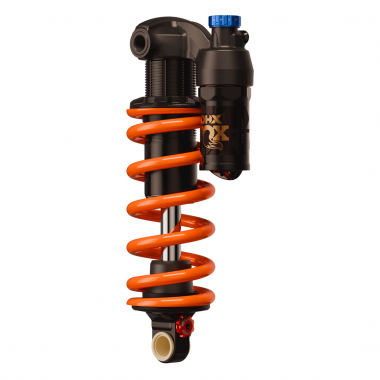

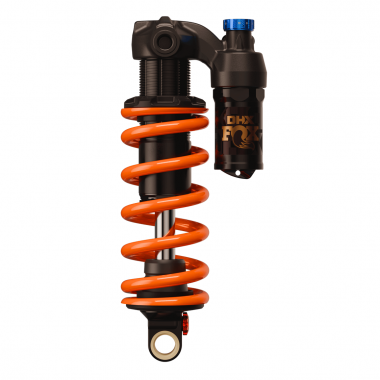

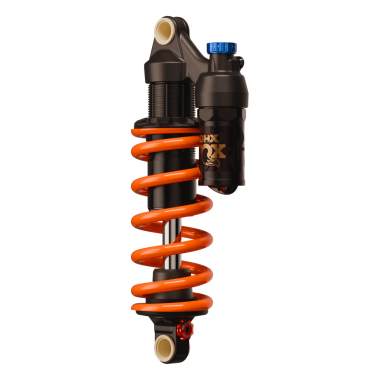

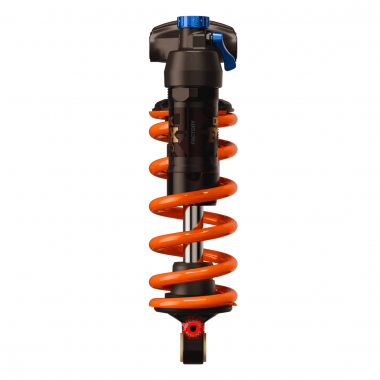

Fox - DHX Factory Shocks

FOX - DHX FACTORY SHOCKS

LOYAL TO THE COIL
For riders who prefer coil suspension, DHX delivers unmatched traction and ground-hugging performance; further improved with our new internals. Coil shocks offer incredible small bump sensitivity and consistency on long descents. For many aggressive Trail riders, coil truly is king.

COIL PERFORMANCE FOR ALL-MOUNTAIN AND BEYOND
The answer for riders seeking the ultimate in plush suspension, DHX brings coil-sprung, ground-hugging, trail-smoothing performance in a wide range of configurations to All-Mountain riding with intuitive adjustments.

ALL-MOUNTAIN PLUSHNESS
The piggyback reservoir increases oil volume and adds a secondary compression circuit for enhanced bump sensitivity, tire grip and fade-free descent performance. Reservoir length is optimized for each shock size for less weight and improved frame fitment.

TERRAIN ADAPTABLE TUNING
A 12-click Low Speed Compression adjuster dials in the perfect level of support while an optional Firm Mode switch allows efficient power transfer when climbing. A wide range of rebound adjustment means DHX can adapt to various terrain and rider preference.

FEATURES

• Monotube architecture with a new high-flow main piston assembly for sensitivity, support, and rear tire grip closer to that of the MY26 FLOAT X2.
• Updated, more durable MCU bottom-out bumper assembly for improved performance and durability.
• Improved top-out bumper for quieter suspension action.
• Coil and air spring options.
• Clickable 2-pos Firm mode switch for efficient power transfer, when desired (FLOAT X and DHX).
• Tool-free 11-click LSC and 16-click LSR adjusters.
• Bearing mount compatible both sides.


SPECS

• Series: Factory
• Upper Tube Finish: Chrome
• Sizes (Metric): 210x55, 230x65
• Sizes (Metric Trunnion): 205x62.5
• Starting Weight: 465g(Without Spring)
