Easton - EC90 AX Carbon Disc Wheels

Gravel / CX

Product Details

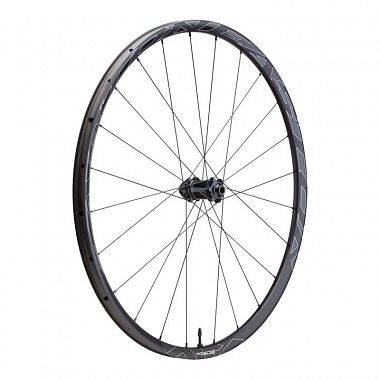

EASTON - EC90 AX CARBON DISC WHEELS

SEEK MORE STOP LESS

Exploring your limits has never looked so good. The all new EC90 AX carbon wheelset joins Easton's AX series as high performance, high adventure wheels built to endure. Race-ready weight, reliable design and fire-road tested durability mean you can seek more while stopping less.

EC90 AX wheels are built to keep you rolling, wherever the path less traveled leads. Wide, 24mm internal rims on both wheelsets are optimized for gravel tires 35mm and larger, giving you a more confident tire stance for control on the ground during your expansive adventure rides, single track forays and unrelenting gravel races. Like all our EC90 wheels laced to Vault disc hubs, the EC90 AX wheelset is covered by the "EASTON Carbon Confidence guarantee".

  • WHEELSET WEIGHT - 1470g
  • FINISH - GLOSS CARBON / VINYL DECALS
  • TYPE - TUBELESS READY CARBON CLINCHER
  • RIM MATERIAL - CARBON
  • RIM DEPTH - 21MM INTERNAL
  • RIM WIDTH - INTERNAL 24MM, EXTERNAL31MM
  • SPOKES - SAPIM STRAIGHT-PULL DOUBLE BUTTED
  • SPOKE PATTERN - 24 / 3X
  • BRAKING SURFACE - DISC - CENTER LOCK ROTOR MOUNT
  • NIPPLE TYPE - DT EXTERNAL ALLOY
  • HUB - EASTON VAULT CENTER-LOCK 12X100 /  12X142*, ENGAGEMENT - 60 POINT 6°, BEARING TYPE- SEALED CARTRIDGE BEARINGS
  • AVAILABLE IN SHIMANO ROAD ONLY, XDR FREEHUB AVAILABLE SEPARATELY
Code Description RRP (Inc. GST) Availability
EC-WH-EC90AX-12X100 EASTON EC90 AX FRONT 12x100/15x100 700c AM20 (8023140) $1269.90 In stock
EC-WH-EC90AX-12X142 EASTON EC90 AX REAR 12x142 700c SHIMANO AM20 (8023141) $1499.90 In stock
EC-PA-8022970 EASTON CASSETTE BODY VAULT XDR (8022970) $254.90 In stock
